Corrosion Resistant Expanded PTFE Spiral Wound Gasket Tensile Strength 14Mpa

  • Corrosion Resistant Expanded PTFE Spiral Wound Gasket Tensile Strength 14Mpa
  • Corrosion Resistant Expanded PTFE Spiral Wound Gasket Tensile Strength 14Mpa
  • Corrosion Resistant Expanded PTFE Spiral Wound Gasket Tensile Strength 14Mpa
  • Corrosion Resistant Expanded PTFE Spiral Wound Gasket Tensile Strength 14Mpa
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3009
Minimum Order Quantity 100pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T, L/C, Paypal, Western Union
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin PTFE Color Whtie, Black
Temperature Resist -140°C - +260°C Surface Smooth
Tensile Strength 20-30Mpa Hardness 55shore A
Elongation 200% Density 2.1-2.3g/cm3
Highlight

ptfe packing material

,

ptfe graphite packing
Leave a Message
Product Description

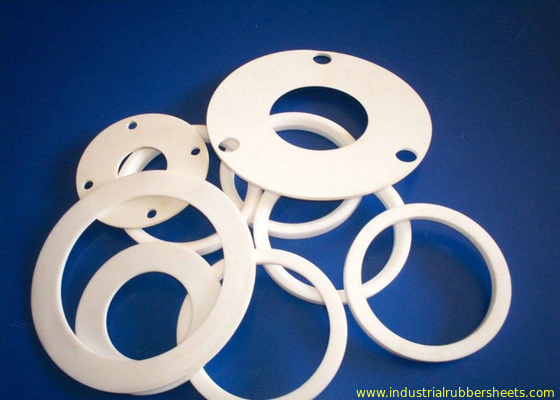

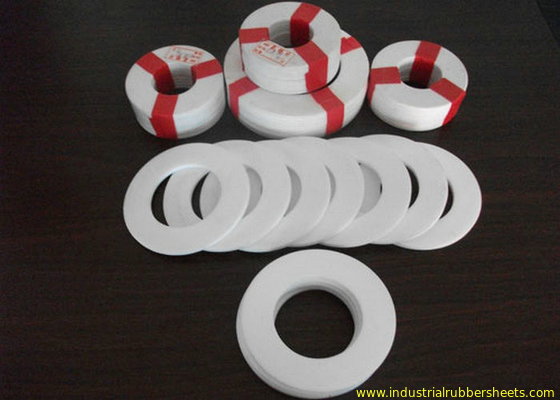

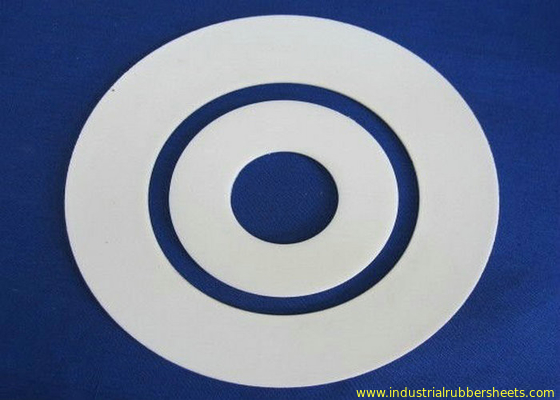

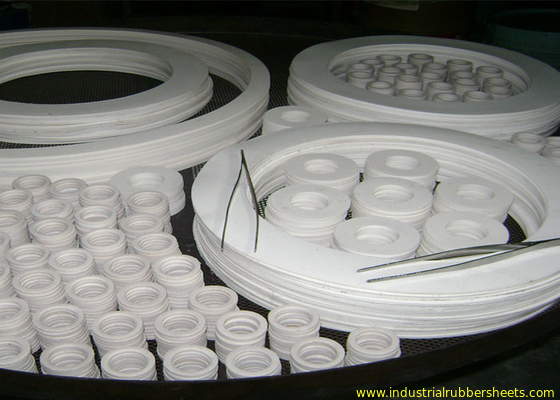

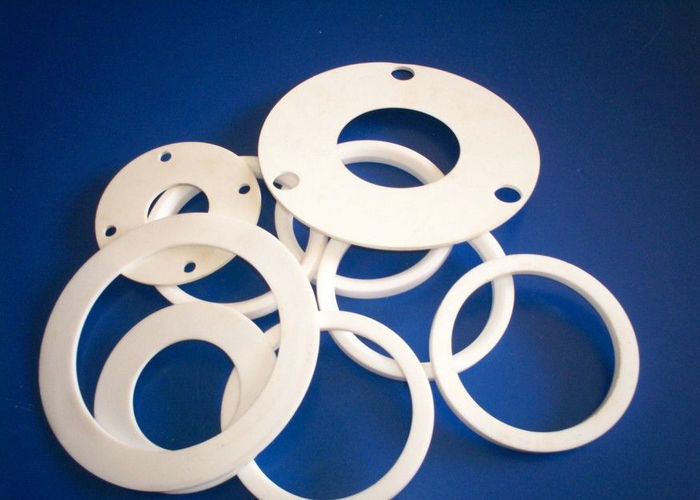

PTFE Gaskets include pure PTFE gasket,expanded PTFE gasket,filled PTFE gasket and PTFE spiral wound gasket.

Pure PTFE gasket is manufactured by molding method with PTFE granular resin. PTFE compared with other plastics, has a superior properties against chemicals and temperature. Because of such excellent properties, PTFE has a wide application as a sealing material.

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

Mpa

20-30

Ultimate elongation (min)(min)

%

200




Expanded PTFE gasket is cut from expanded PTFE sheet. We could produce any size. And we also produce according customer request.

compressibility

12%

Recovery

40%

Stress Relaxation

37%

Tensile Strength

14Mpa

Sealing Capability

0.1m1/hr

Temperature

260

Pressure

8.3Mpa

PH

0-14



Filled PTFE gasket is manufactured by moding method with filled PTFE resin. Filled PTFE resin is manufactured by compounding PTFE granular resin with fillers of many differents kinds. Amongst the many fillers suitable for compounding with PTFE, glass fiber, carbon fiber, Bronze and also lubricating materials like graphite, molybdenum disulphide, have been widely used in large scale production, Broadly speaking PTFE compounds have the following advantage over unfilled.


Filled compound and Content by wt
Tensie strength MPa(min)
Ultimate strength %(min)
Compresive strength MPa(min)
20% glass fiber
10
120
16
25% glass fiber
10
100
16
20% glass fiber 5% graphile
10
120
16
60% Bronze
10

80

20
15% carbon fiber
11
130
16
24% Bronze 12% glass fiber 6% graphile
9
100
16
15% glass fiber 10% Polyikmide 5% graphile
10
120
16.7

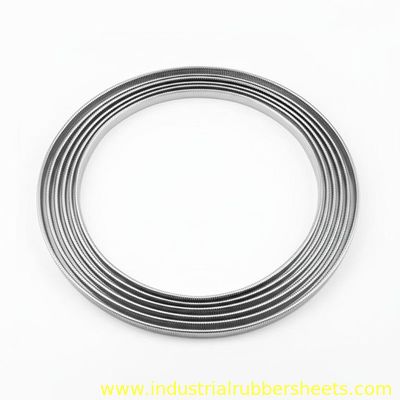

PTFE spiral wound gasket is corrosion resistant and high pressure product.  By winding metal with PTFE is model PTFE spiral wound gasket. It could fix the outer ring or inner ring, even with outer and inner ring.
