Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ

  • Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ
  • Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ
  • Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ
  • Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A4009
Minimum Order Quantity 10pieces
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T, L/C, Paypal, Western Union
Supply Ability 1000000pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Rubber + Galvanized Metal Type FRS, FRH
Color Black Quality Industrial Grade
Hardness 40, 50, 60shore A Size Standard Size
OEM Agreed
Highlight

rubber vibration damper

,

anti vibration mounts
Leave a Message
Product Description

FRS , FRH type rubber shock absorber , rubber mounting , rubber mounts

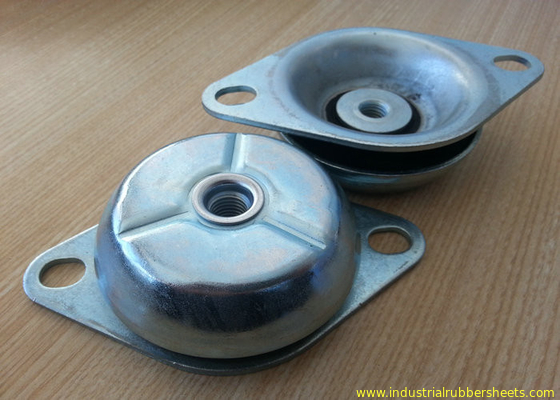

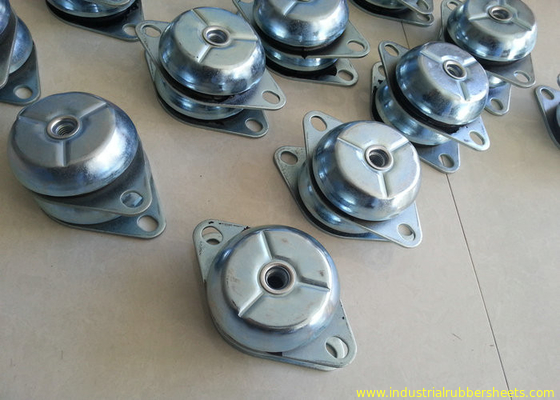

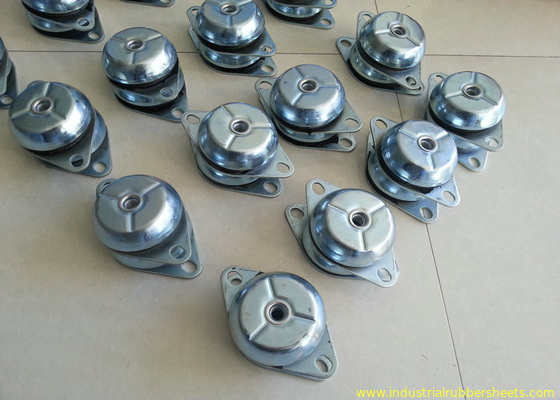

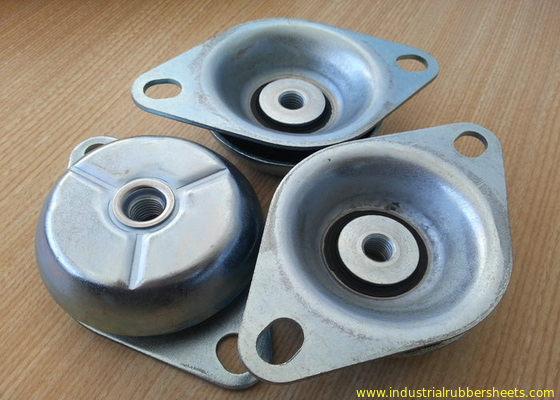

FRS, FRH rubber mountings is one of bell-type shock absorber screw with professional technology and inimitable formulation. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It is excellent properties of anti-vibration on axial and lateral for generators, engines, motors system with 500-3500HZ at FRS mounting and 1500-3500HZ at FRH mounting, small rubber compress but higher load, and it help to get more safety with special design of safety lock. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.



Specifications:
material: galvanized metal + rubber
rubber: NR, NBR(default is NR)
quality: industrial grade
color: black
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8-12Mpa
hardness: 40, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
working temperature: -40°C - +120°C
working frequency: 500-3000HZ
size: standard without mould cost
OEM: agree to produce by the buyer's drawing
packing in cartons


***when you order, pls confirm the quantity and product code number or your drawings***



Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ 0Industrial Grade Rubber Shock Mounts With Round Cap Of Female Screw FRS , FRH Typ 1



Item

IRHD

Dimensions (mm)

Average Load

Max Load

Max Compression

daN/mm

A

B

C

E

F

Kg/mm

Kgs

mm

FRS633508W

40

63

35

M8

88

110

7

30

4.3

FRS633508M

60

63

35

M8

88

110

24

90

3.8

FRS633510W

40

63

35

M10

88

110

7

30

4.3

FRS633510M

60

63

35

M10

88

110

24

90

3.8

FRS783510W

40

78

35

M10

110

135

18

70

4

FRS783510M

60

78

35

M10

110

135

38

140

3.7

FRS783512W

40

78

35

M12

110

135

18

70

4

FRS783512M

60

78

35

M12

110

135

38

140

3.7

FRS833510W

40

83

35

M10

110

135

20

80

4

FRS833510M

60

83

35

M10

110

135

54

200

3.7

FRS833512W

40

83

35

M12

110

135

20

80

4

FRS833512M

60

83

35

M12

110

135

54

200

3.7

FRS924210W

40

92

42

M10

123.5

150

63

220

3.5

FRS924210M

60

92

42

M10

123.5

150

100

350

3.5

FRS924212W

40

92

42

M12

123.5

150

63

220

3.5

FRS924212M

60

92

42

M12

123.5

150

100

350

3.5

FRS1064212W

40

106

42

M12

143

175

76

380

5

FRS1064212M

60

106

42

M12

143

175

96

480

5

FRS1064216W

40

106

42

M16

143

175

76

380

5

FRS1064216M

60

106

42

M16

143

175

96

480

5

FRS1254812W

40

125

48

M12

156

192

100

500

5

FRS1254812M

60

125

48

M12

156

192

168

840

5

FRS1254816W

40

125

48

M16

156

192

100

500

5

FRS1254816M

60

125

48

M16

156

192

168

840

5

FRS1505416W

40

150

54

M16

182

218

100

600

6

FRS1505416M

60

150

54

M16

182

218

129

900

7

FRS1505420W

40

150

54

M20

182

218

100

600

6

FRS1505420M

60

150

54

M20

182

218

129

900

7

FRH633008W

40

63

30

M8

89

110

20

46

2.3

FRH633008M

60

63

30

M8

89

110

52

120

2.3

FRH633010W

40

63

30

M10

89

110

20

46

2.3

FRH633010M

60

63

30

M10

89

110

52

120

2.3

FRH783010W

40

78

30

M10

110

135

61

140

2.3

FRH783010M

60

78

30

M10

110

135

117

270

2.3

FRH783012W

40

78

30

M12

110

135

61

140

2.3

FRH783012M

60

78

30

M12

110

135

117

270

2.3

FRH833010W

40

83

30

M10

110

135

70

160

2.3

FRH833010M

60

83

30

M10

110

135

126

290

2.3

FRH833012W

40

83

30

M12

110

135

70

160

2.3

FRH833012M

60

83

30

M12

110

135

126

290

2.3

FRH923510W

40

92

35

M10

124

150

49

170

3.5

FRH923510M

60

92

35

M10

124

150

91

320

3.5

FRH923512W

40

92

35

M12

124

150

49

170

3.5

FRH923512M

60

92

35

M12

124

150

91

320

3.5

FRH1063814W

40

106

38

M14

143

175

71

250

3.5

FRH1063814M

60

106

38

M14

143

175

129

450

3.5

FRH1063816W

40

106

38

M16

143

175

71

250

3.5

FRH1063816M

60

106

38

M16

143

175

129

450

3.5

FRH1254316W

40

125

43

M16

156

192

125

500

4

FRH1254316M

60

125

43

M16

156

192

200

800

4

FRH1254318W

40

125

43

M18

156

192

125

500

4

FRH1254318M

60

125

43

M18

156

192

200

800

4

FRH1505018W

40

150

50

M18

182

218

125

750

6

FRH1505018M

60

150

50

M18

182

218

183

1100

6

FRH1505020W

40

150

50

M20

182

218

125

750

6

FRH1505020M

60

150

50

M20

182

218

183

1100

6
