Customed Silicone Heater Pad Silicone Mug with Waterproof Non-Toxic Silicone Sponge Rubber Sheet
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A1006 |
| Minimum Order Quantity | 20pieces |
| Price | USD10.00/Pieces |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union,Paypal, MoneyGram, D/P |
| Supply Ability | 10000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone Foam Rubber | Voltage | As Per The Buyer's Request |
|---|---|---|---|
| Cable | Custom | Power | As Per The Buyer's Request |
| Electric Thermostat | Custom | Uniform Heating | As Per The Buyer's Request |
| Heater Width | As Per The Buyer's Request | Adhesive Backing | Yes, Custom |
| Temperature Resistance | -60℃ To 200℃ | Service | OEM ODM |
| Usage | Widely Used | Gasket | As Per The Buyer's Drawing |
| Fda Compliance | Yes | Fda Compliant | No |
| Aging Resistance | Excellent | Tensile Strenth | 1.4Mpa |
| Temperature Range | -50℃ To 200℃ | Elongation At Break | 100% |
| Highlight | custom silicone heater pad,waterproof silicone heater pad,non toxic silicone heater pad |
||
Product Description
Customed Silicone Heater Pad , Waterproof Non-Toxic Silicone Mug With High Quality

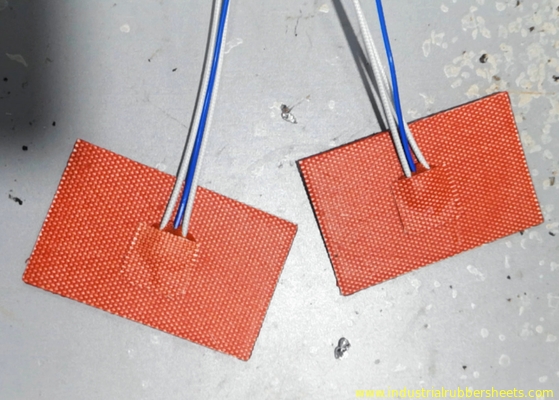

Description of heating pad element silicon rubber heater
Silicon rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.
2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.
3. Water, acid and alkali resistance, high-strength of electric insulation.
4. High mechanical strength with 100kg/cm² mechanical pressure.
5. Small size: Small space occupied when applying this heating product.
6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.
7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.
8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.
9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.
Technical parameters:
2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.
3. Water, acid and alkali resistance, high-strength of electric insulation.
4. High mechanical strength with 100kg/cm² mechanical pressure.
5. Small size: Small space occupied when applying this heating product.
6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.
7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.
8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.
9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller.
Technical parameters:
Specification:
| Material | Silicone + Wire |
| Voltage | 220-240V |
| Cable | 4Cores, 0.5m length |
| Power | 350W |
| Electric thermostat | K, NTC, PT100 Sonde |
Uniform heating to 220 degree C
Easy to install
Heater width to 48 inches(1.2 m)
Mount to flat or curved surfaces
