High Hardness Polyurethane Coupling Ktr Rubber Coupling Smooth Surface

  • High Hardness Polyurethane Coupling Ktr Rubber Coupling Smooth Surface
  • High Hardness Polyurethane Coupling Ktr Rubber Coupling Smooth Surface
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 100pieces
Price neogation
Packaging Details Packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Yellow,black,red, Surface Smooth
Size Build Mould Per Buyer's Drawings Hadrness 80-98 Shore A
Tensible Strength 55Mpa For Polyester Elongation 650%
Density 1.25g/cm³ MOQ 100
Style Mechanical Seal
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description

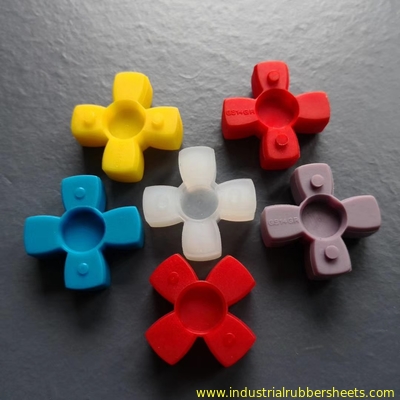

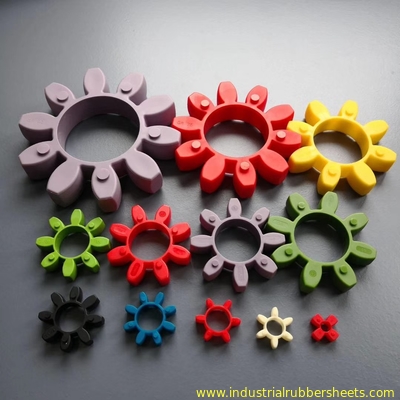

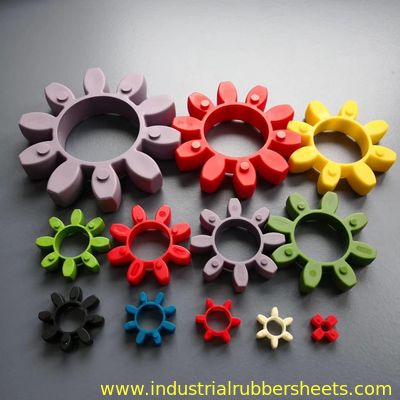

PU Gr Coupling, GS Rubber Coupling, KTR Rubber Coupling With High Quality



The polyurethane coupling, rubber coupling are made by injection with high quality TPU material or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets injection moulds and supply full range of GR, GS, MT, ML, MH, Hb, HRC, L, T, NM and Gear J series couplings etc. with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.

Material
Material: TPU
Hardness: Yellow: 92 Shore A
Red: 98 Shore A
Green: 64 Shore D
Standard: KTR, Germany


Size		 Material OD ID H H1 Lemella qty
GR14 Polyurethane 30 10.5 12 10 4
GR19 Polyurethane 40 18 14.5 12 6
GR24 Polyurethane 54 26 15.2 14 8
GR28 Polyurethane 65 30 19 15 8
GR38 Polyurethane 80 38 22 18 8
GR42 Polyurethane 95 46 24 20 8
GR48 Polyurethane 104 51 25.5 21 8
GR55 Polyurethane 120 60 27 22 8
GR65 Polyurethane 135 68 32 26 8
GR75 Polyurethane 160 80 37 30 10
GR90 Polyurethane 199 100 42 34 10
GR100 Polyurethane 225 113   38 10
GR110 Polyurethane 255 127   42 10
GR125 Polyurethane 290 147   46 10
GR140 Polyurethane 320 165   50 10
GR160 Polyurethane 370 190   57 10
GR180 Polyurethane 420 220   64 12





Specifications:

material polyester, CSM/SBR
color yellow, red, purple, green, black etc.
surface smooth
tensile strength 12-55Mpa
hardness 80-98Shore A
elongation 400%-650%
density 1.25g/cm3
elasticity impact >25%
tear strength 35-155KN/m
akron abrasion loss <0.05cm3/1.61km
compression set (22h*70oC) <10%
working temperature 120℃
size build molding according to the buyer's drawings

High Hardness Polyurethane Coupling Ktr Rubber Coupling Smooth Surface 0
High Hardness Polyurethane Coupling Ktr Rubber Coupling Smooth Surface 1
