Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type

  • Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type
  • Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type
  • Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type
  • Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type
  • Black Color HRC PU Coupling Tensile Strength 50Mpa F Flange Type
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 100pieces
Price neogation
Packaging Details Packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Type HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC2
Surface Smooth Tensile Strength 50Mpa
Hardness 80-98shore A Elongation 650%
Density 1.25g/cm³
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description

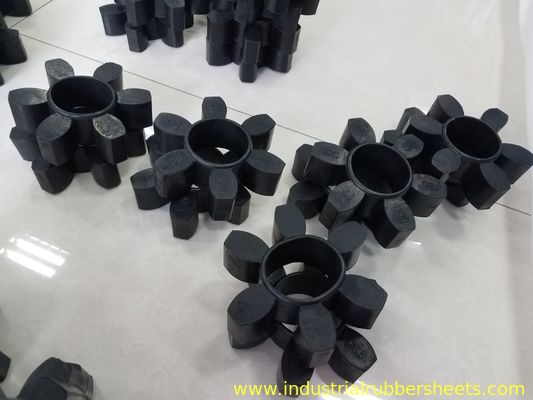

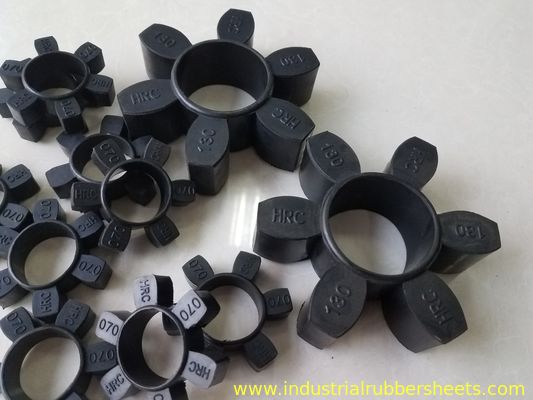

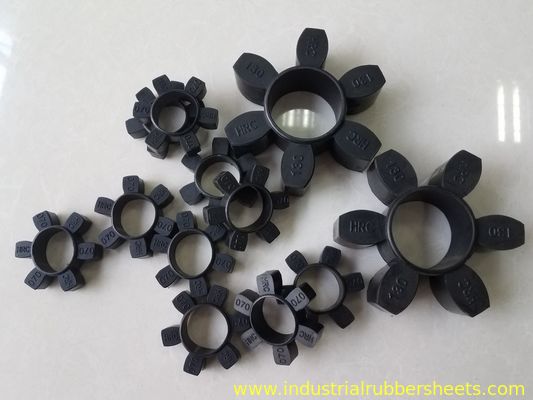

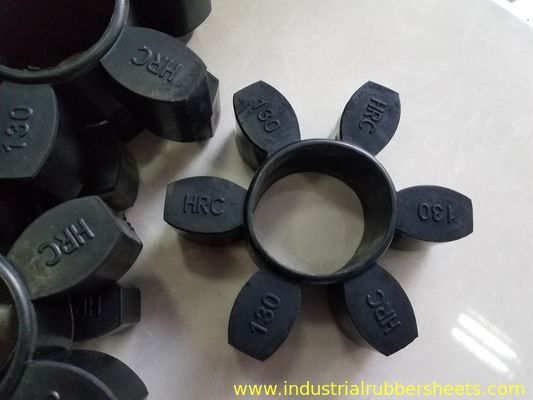

Black Color HRC Polyurethane Coupling, HRC PU Coupling with High Quality



Advantages:



1. Taper Bush Fixing Allows Quick and Easy Assembly

2. Simple Alignment by Straight Edge

3. Accommodates Minor Misalignment

4. Available as F flange type, bush mounted from inside, and H flange bush, inserted from outside face.





Item HRC280 HRC230 HRC180 HRC150 HRC130 HRC110 HRC90 HRC70
OD(mm) 252 201 160 133 115.3 95.8 72.4 58.3
ID(mm) 119.4 97 76 62 49.4 43.7 31.2 29.6
Thickness(mm) 50.4 42.3 32 28 22 19.4 15.4 11.9
Weight(g) 1500 780 400 270 155 90 55

20





Specifications:

material TPU, CSM/SBR, NBR, nylon etc.
color yellow, red, purple, green, black, beige etc.
surface smooth
tensile strength 8-55Mpa
hardness 70-98Shore A
elongation 400%-650%
density 1.25g/cm3
elasticity impact >25%
tear strength 35-155KN/m
akron abrasion loss <0.05cm3/1.61km
compression set (22h*70oC) <10%
working temperature 120oC






standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
SBT T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10
FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#
FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 13J, 14J
Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H
Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160
SBT T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T210

standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
M28, M32, M38, M42, M48, M58, M65
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
